A perimeter drain is a French drain placed along a foundation, retaining edge or problem section of a yard to intercept water before it reaches the structure. In San Bernardino, the layout must account for abrupt runoff during storms as well as a hot desert climate that can dry and harden exposed ground between wet periods. Properties around Downtown San Bernardino, Arrowhead and Del Rosa also vary considerably in age, grading and previous additions. We first determine whether the water is coming from roof runoff, an uphill lot, irrigation, a low side yard or below-grade seepage. That diagnosis controls the trench depth, drainage pipe location and discharge plan.
A durable system typically uses perforated drainage pipe surrounded by clean, washed drain rock and separated from surrounding soil with a suitable filter fabric. Pipe slope must remain consistent; dips create standing water and high spots prevent the line from draining fully. We avoid treating decorative gravel as functional drainage unless there is a properly built collection trench below it. Where roots, narrow setbacks, concrete paths or utility routes restrict excavation, the drain may need cleanouts, solid-pipe transitions or multiple collection zones. Solid pipe is generally used to carry collected water to the outlet so it does not leak back into the soil beside the foundation.
Discharge is as important as collection. Water should not be directed onto a neighboring parcel, against another part of the building or across a sidewalk. Depending on the outlet, excavation and connection involved, requirements may apply through the City of San Bernardino or another authority having jurisdiction; utility locating and any necessary approvals should be addressed before digging. Lots near Verdemont and California State University San Bernardino can involve grades that move runoff quickly, while flatter properties in Muscoy may offer fewer gravity-outlet choices. If gravity drainage is not practical, a basin and pump may be evaluated rather than installing a pipe that has nowhere dependable to drain.
Perimeter drainage is not a substitute for repairing a failed footing, waterproofing an actively leaking wall or correcting a plumbing leak. It also cannot perform well when roof downspouts empty directly into the same saturated trench without adequate capacity and controlled conveyance. We coordinate the drain with surface grading, downspout routing and accessible cleanouts so the system can be inspected later. For homes and small properties across San Bernardino County, including routes toward Highland, Colton and Redlands, the most reliable design is the one based on actual elevations and a lawful outlet—not simply the deepest trench or largest drainage pipe.
Technician insight
In San Bernardino, the thing that catches most people out with perimeter drain installation is assuming a gravel trench will work without a dependable outlet. On flatter lots in Muscoy, gravity fall can disappear before the drainage pipe reaches a safe discharge point, while sloped properties near Verdemont may send water downhill faster than an undersized system can accept it. I establish the outlet and elevations before specifying the trench.
Perimeter Drain Installation Services We Offer
✓Foundation Perimeter French Drains
A gravel-and-perforated-pipe system intercepts water along vulnerable foundation edges and carries it to a controlled outlet. Depth and placement are selected to reduce saturation without undermining footings.
✓Yard Perimeter Drainage
Perimeter collection lines capture runoff along fences, planting beds and low yard boundaries. This is useful where water repeatedly migrates toward patios, walls or the building.
✓Retaining Wall Drain Installation
Drain rock, filter separation and drainage pipe help relieve water buildup behind retaining edges. Outlet placement and wall construction must be evaluated before excavation begins.
✓Downspout Drainage Connections
Roof water can be carried through solid pipe to an appropriate discharge point rather than released beside the foundation. Connections are kept separate from perforated sections where mixing flows could resaturate the trench.
✓Drainage Pipe Replacement
Crushed, root-affected, poorly sloped or sediment-filled drainage pipe can be replaced and regraded. Accessible cleanouts may be added to make future inspection and maintenance more practical.
✓Catch Basin and Perimeter Drain Systems
Surface basins collect concentrated runoff while a perimeter French drain handles water moving through the soil. Combining the two can address both visible ponding and subsurface migration.
✓Sump Basin Discharge Systems
Where a safe gravity outlet is unavailable, a properly located basin and pumped discharge may be considered. Electrical, discharge and maintenance requirements are reviewed before this option is recommended.
Perimeter Drain Installation Cost in San Bernardino, CA
| Service | Typical Range | What Affects It |
|---|---|---|
| Site Drainage Evaluation And Layout | $150–$450 | Varies with lot size, elevation checks, access and the number of problem areas; the fee may be handled differently when installation is approved. |
| Short Accessible Perimeter Drain Section | $1,500–$4,000 | Typical for a limited open-soil run with a workable gravity outlet; depth, length and restoration can move the price. |
| Full-Side Foundation Perimeter Drain | $3,500–$9,000 | Affected by footing depth, trench access, soil handling, roots, utilities and outlet distance. |
| Multi-Side Perimeter Drain System | $8,000–$20,000+ | Complex layouts, deep excavation, extensive pipe runs, multiple collection zones and hardscape restoration increase cost. |
| Catch Basin Or Downspout Connection Add-On | $400–$1,500 | Depends on basin size, connection distance, pipe depth and whether concrete or landscaping must be disturbed. |
| Sump Basin And Pump Add-On | $2,000–$6,000+ | Pump capacity, electrical needs, basin depth, discharge route and applicable requirements determine the final scope. |
Ranges are typical for San Bernardino, CA and confirmed with an exact written quote before any work starts.
How it works
- 1
Site And Water-Source Evaluation
We inspect grading, roof discharge, irrigation, foundation edges, retaining features and visible water paths. Elevations are checked to determine whether a gravity outlet is realistic.
- 2
Drainage Layout And Quote
We define the collection area, trench route, pipe type, cleanout locations and proposed discharge point. The quote reflects access, excavation depth, surface restoration and disposal needs.
- 3
Utility Check And Excavation
Utility locating and any applicable approval requirements are addressed before excavation. The trench is opened carefully around foundations, roots, hardscape and known service routes.
- 4

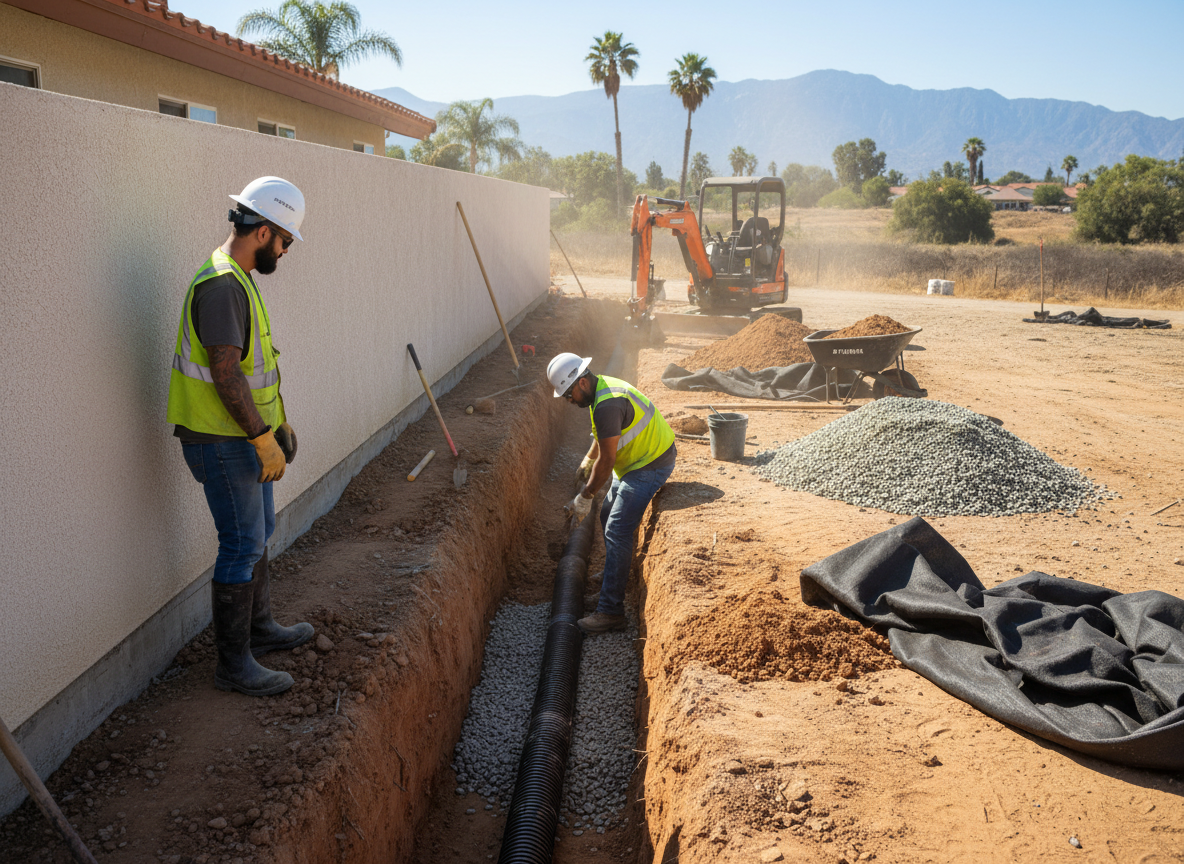

Pipe, Fabric And Aggregate Installation
The drainage pipe is set to a verified fall, surrounded with washed drain rock and separated from native soil where appropriate. Solid conveyance pipe and cleanouts are installed according to the layout.
- 5
Outlet Test And Site Restoration
We verify flow toward the intended outlet, check connections and backfill the work area. Disturbed surfaces are restored to the scope stated in the quote, and maintenance points are identified.
Pricing
Perimeter drain pricing depends mainly on trench length and depth, access for excavation, hardscape removal, disposal volume, root or utility conflicts, outlet distance and whether gravity drainage is possible. A site visit is needed for an upfront quote because a short open-yard run differs substantially from a deep foundation trench behind concrete or mature landscaping.
